$1≥1Meter
| Payment Type: | T/T |
| Incoterm: | FOB |
| Min. Order: | 1 Meter |
| Transportation: | Ocean,Land,Air |
| Port: | Tianjin |
Model No.: EN856 4SP
Brand: PB Hose
Place Of Origin: China
Processing Service: Moulding, Cutting
Inner Tube: NBR
Reinforcement: High Tensile Steel Wire Spirals
Cover: Synthetic Rubber
Working Temperature: -40℃ up to +100℃
Feature: Anti-aging and oil resistance
Color: Black
Application: For delivery water/mineral oil/water based hydraulic oil
Size: 1/4"~2"
| Selling Units | : | Meter |
| Package Type | : | woven bags |
| Picture Example | : |
|

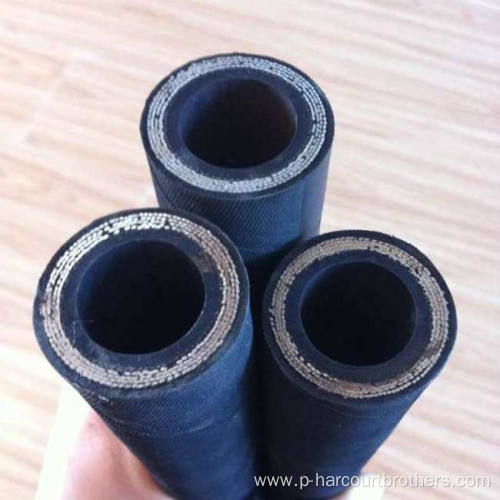

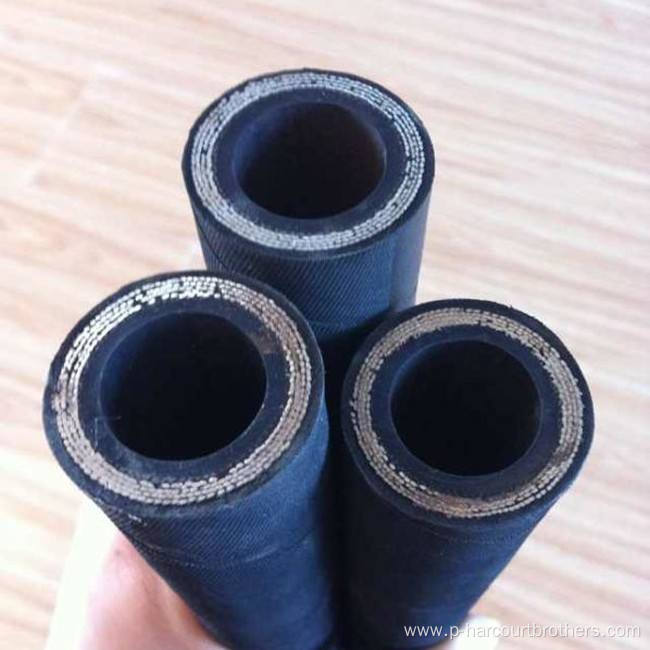

Oil resistance Four Wire Spiral Hydraulic Hose DIN EN856 4SP
| inch | I.D | wire O.D | O.D | work press | burst press | Min bending radius | |||
| inch | mm | mm | mm | Mpa | psi | Mpa | psi | mm | |
| 10 | 3/8" | 9.5 | 17.5 | 21.4 | 44.5 | 6450 | 180 | 26000 | 180 |
| 13 | 1/2 | 12.7 | 20.2 | 24 | 41.5 | 5000 | 166 | 24000 | 230 |
| 16 | 5/8" | 15.9 | 23.8 | 28.2 | 35 | 5000 | 140 | 20000 | 250 |
| 19 | 3-4" | 19 | 28.2 | 32.2 | 35 | 4200 | 146 | 20000 | 300 |
| 25 | 1 | 25.4 | 35.5 | 39.7 | 28 | 4000 | 112 | 16000 | 340 |
| 32 | 1-1/4 | 31.8 | 46 | 50.8 | 21 | 3000 | 84 | 12000 | 460 |
| 38 | 1-1/2 | 38.1 | 52.4 | 57.7 | 18.5 | 2700 | 74 | 10800 | 560 |
| 51 | 2 | 50.8 | 65.3 | 69.6 | 16.5 | 2400 | 66 | 9600 | 660 |
Hebei no one but god energy equipment co., ltd. is located in the west of hebei hengshui city, east of beijing-fuzhou expressway and beijing-shanghai railway, geographic location is superior,the transportation is convenient, the company is a collection research and development, production and sales of rubber products of science and technology enterprises. The company covers an area 30000 square meters , construction area of 8000 square meters , fixed assets 26 million yuan, the staff 85 people, now has all kinds of winding machine, weaving machine, mixer, vulcanizing machine, 60 sets of equipment (sets).Equipped with a complete analysis of testing equipment, advanced detection means is perfect. 6. Air Operated Thread Protectors, Mech-Tec (TM) Clamp-On Thread Protectors.

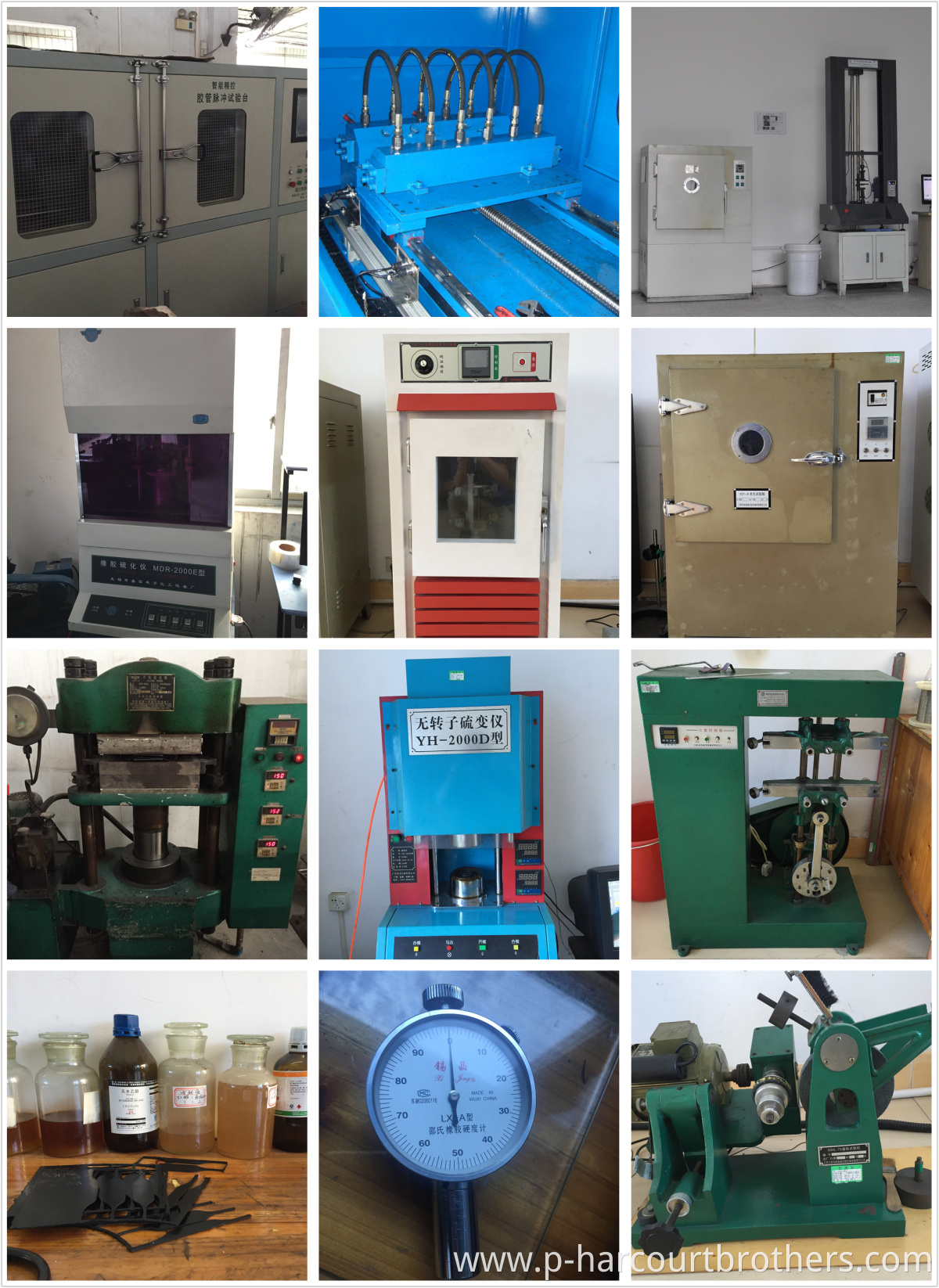

Test Machines
The company mainly produces:
1. Resistance burning antistatic high pressure steel wire spiral Rubber Hose , High Pressure Braided Hose, high temperature resistant rubber hose, Concrete Pump Hose .
2.Super high pressure steel wire hose and high pressure hose assembly.
3. Drilling hose,Floating Dredging Hose, Marine Oil Hose large caliber, Dredger Hose, Flame Resistant Hose
Dredger Suction and Discharge Hose.
4. Oil field special rubber seals.
5. Solid control parts: Hammer Union, Air Grip Unions, Mud Tank Unions.
The company since its inception, relying on science and technology for development. Established
long-term cooperative relations with chemical shenyang rubber research institute, has the research development, production of hundreds of special rubber products, in the domestic each big oil fields,steel mills, mining, machinery and other industries has been the user's consistent high praise.
