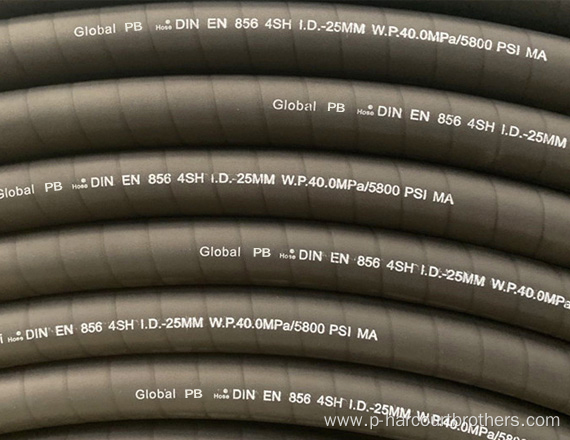

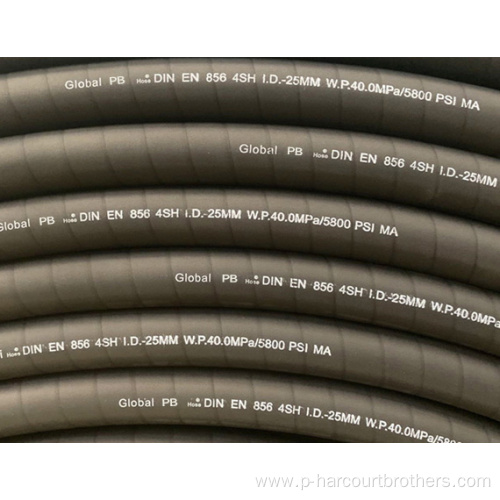

EN856 4SP steel wire reinforced hydraulic rubber hose
$1≥1Meter
Payment Type: | T/T |
Incoterm: | FOB |
Min. Order: | 1 Meter |
Transportation: | Ocean,Land,Air |
Port: | Tianjin |
$1≥1Meter
Payment Type: | T/T |
Incoterm: | FOB |
Min. Order: | 1 Meter |
Transportation: | Ocean,Land,Air |
Port: | Tianjin |
Model No.: EN856 4SP
Brand: PB Hose
Place Of Origin: China
Processing Service: Moulding, Cutting
Material: NBR synthetic rubber
Tube: oil resistant synthetic rubber

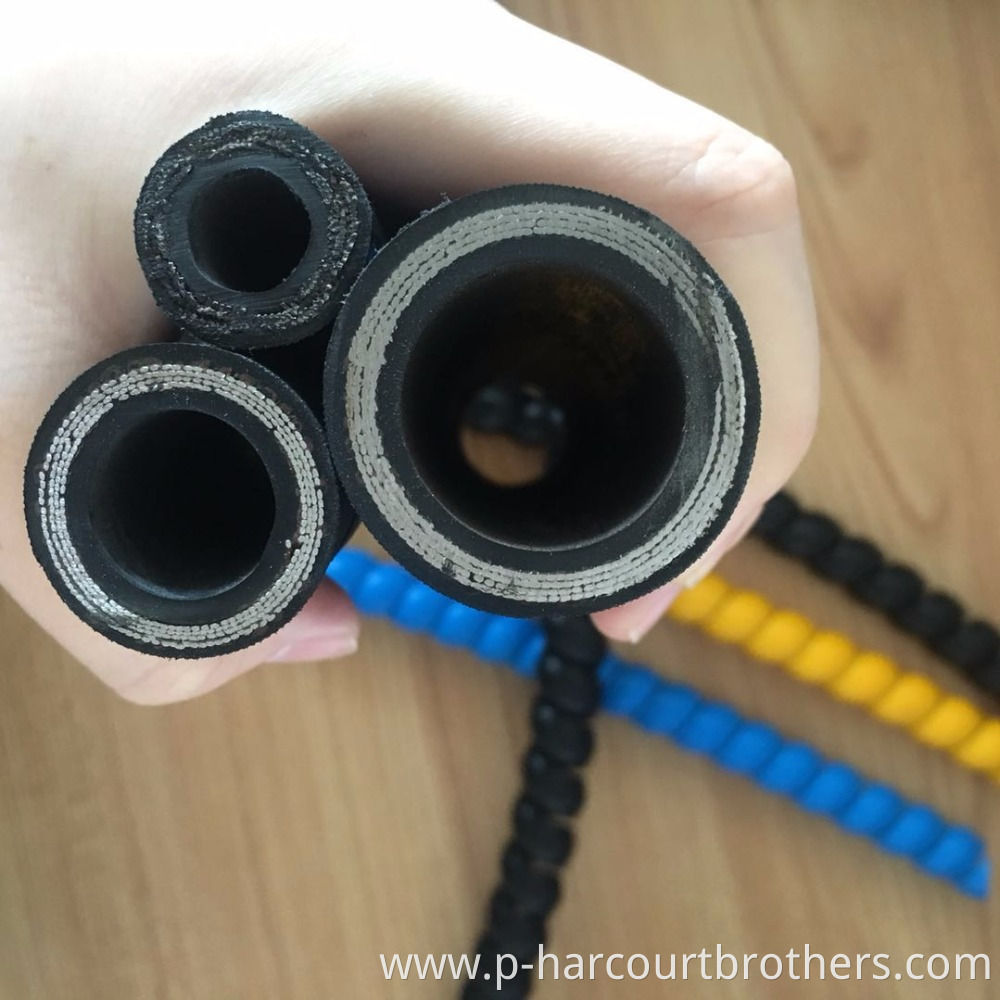

Reinforcement: 4 layers High Tensile Steel Wire spiral
Cover: oil and weather resistant synthetic rubber cover
Working Temperature: -40 ~ 120 Degrees
Working Pressure: 16.5MPa
Color: Black or as your require
Size: 1/4"~2"
This hose can be used in construction, machine tool and agriculture field.
E.g. Mine hydraulic fluid, oil exploration, crane, forging metallurgy, mining equipment, ships, injection molding machinery, agricultural machinery and various machines tools.etc.
1) Inner Tube is NBR,SBR,NR blend rubber.
2) Reinforcement is 4 layers wire braided.
3) Cover Tube is weather ,ozone, UV and resistant.
Reference Standard | |||
| 1.SAE 100R1AT/EN853 1SN/EN 857 1SC | ||
2.SAE 100R2AT/EN853 2SN/EN 857 2SC | |||
3.SAE 100R16 | |||
4.SAE 100R17 | |||
Wire spiralled Rubber hose | 1.SAE 100R9/ EN856 4SP | ||
2.SAE 100R10/ EN856 4SH | |||
3.SAE 100 R12 | |||
4.SAE 100 R13 | |||
5.SAE 100 R15 | |||
| 1.SAE 100R7/EN855 R7 | ||
2.SAE 100R8/EN855 R8 | |||
3.SAE 100 R3 | |||
4.SAE 100 R6 |
Hebei no one but god energy equipment co., ltd. is located in the west of hebei hengshui city, east of beijing-fuzhou expressway and beijing-shanghai railway, geographic location is superior,the transportation is convenient, the company is a collection research and development, production and sales of rubber products of science and technology enterprises. The company covers an area 30000 square meters , construction area of 8000 square meters , fixed assets 26 million yuan, the staff 85 people, now has all kinds of winding machine, weaving machine, mixer, vulcanizing machine, 60 sets of equipment (sets).Equipped with a complete analysis of testing equipment, advanced detection means is perfect.
The company mainly produces:
1. Resistance burning antistatic high pressure steel wire spiral rubber hose, High Pressure Braided Hose, high temperature resistant rubber hose, Concrete Pump Hose .
2.Super high pressure steel wire hose and high pressure hose assembly.
3. Drilling hose,Floating Dredging Hose, Marine Oil Hose large caliber, Dredger Hose, Flame Resistant Hose
Dredger Suction and Discharge Hose.
4. Oil field special rubber seals.
5. Solid control parts: Hammer Union, Air Grip Unions, Mud Tank Unions.
6. Air Operated Thread Protectors, Mech-Tec (TM) Clamp-On Thread Protectors.
The company since its inception, relying on science and technology for development. Established
long-term cooperative relations with chemical shenyang rubber research institute, has the research development, production of hundreds of special rubber products, in the domestic each big oil fields,steel mills, mining, machinery and other industries has been the user's consistent high praise.
