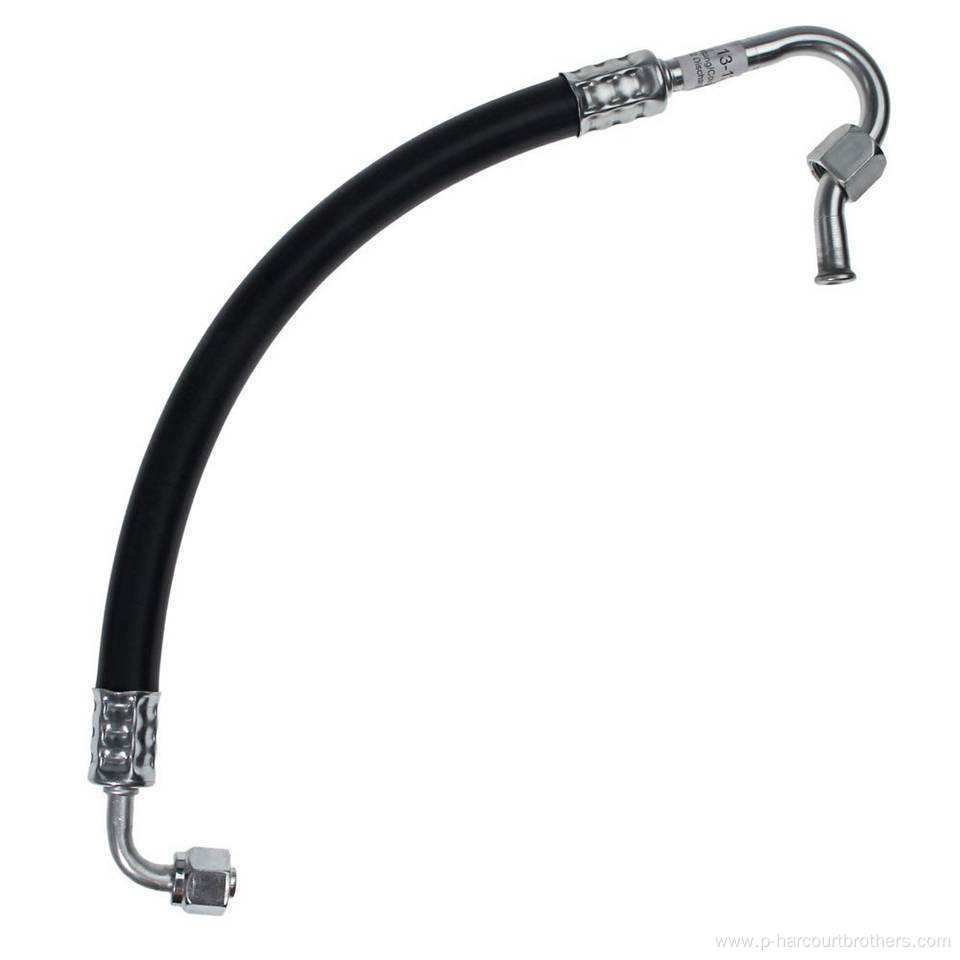

SAE J188 Truck Power Steering Hose Reinforced Braided Pipe
$1≥1Meter
Payment Type: | T/T |
Incoterm: | FOB |
Min. Order: | 1 Meter |
Transportation: | Ocean,Air,Land |
Port: | Tianjin |
$1≥1Meter
Payment Type: | T/T |
Incoterm: | FOB |
Min. Order: | 1 Meter |
Transportation: | Ocean,Air,Land |
Port: | Tianjin |
Model No.: SAE J188
Brand: PB Hose
Place Of Origin: China
Material: Synthetic rubber hose, Synthetic Rubber
Reinforcement: High Tensile Fiber Braided
Temperature Range: -40°C~+125°C
Standard: SAE J188
Size: 3/8'', 3/8"
Cover: Smooth Surface
Certification: IATF 16949
Type: Power steering hose
Barrier: NYLON
SAE J188 Automotive Power Steering Hose
Construction:
Tube: Oil resistance synthetic rubber(EPDM)
Reinforcement: High tensile fiber braided
Cover: Synthetic rubber with excellent aging resistance(EPDM)
Surface: Smooth surface or cloth wrapped
Temperature range: -40ºC - +125ºC
Standard: SAE J188, MS263-53
Application: It is used to the vehicles power steering system and pressure transfer in power steering assembly
Features/Characteristic:
The hose can bear high pressure with good performance of pluse resistance, oil resistance, low turbidity flexing resistance and hot air resistance.
It has the performance of Anti-burst, high tensile strength and the change rate of tube length is small after being pressed.
It can provid you reliable, safe power steering performance in any circumstance, to ensure the vehicle operate easily and safe.
Specification
Auto Power Steering Hose | |||||
Specification (Inch) | I.D.(mm) | O.D. (mm) | Wall thickness(mm) | Burst pressure (MPA) | Working pressure(MPA) |
3/8'' | 9.5±0.3 | 20±0.5 | 5.1 | >42 | 10.3 |
3/8'' | 9.5±0.3 | 18.5±0.5 | 4.5 | >42 | 10.3 |
Note:Above Specification Just for your reference. We can produce the OEM Size for you. |

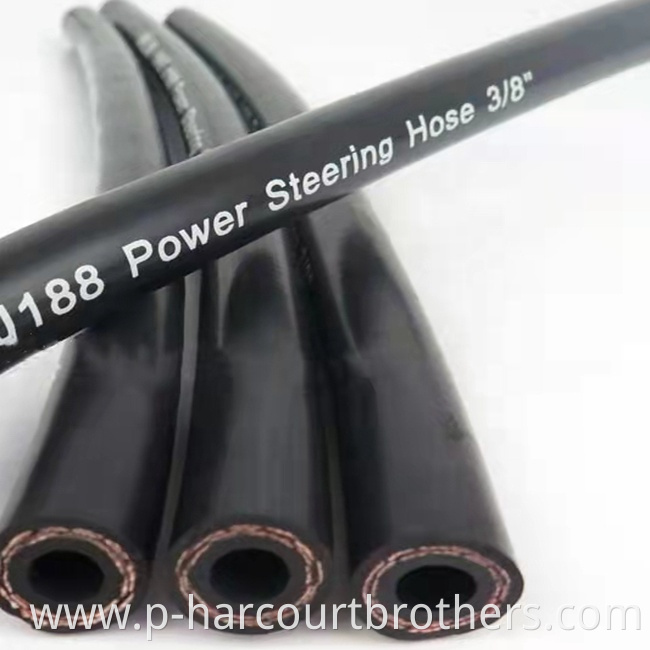

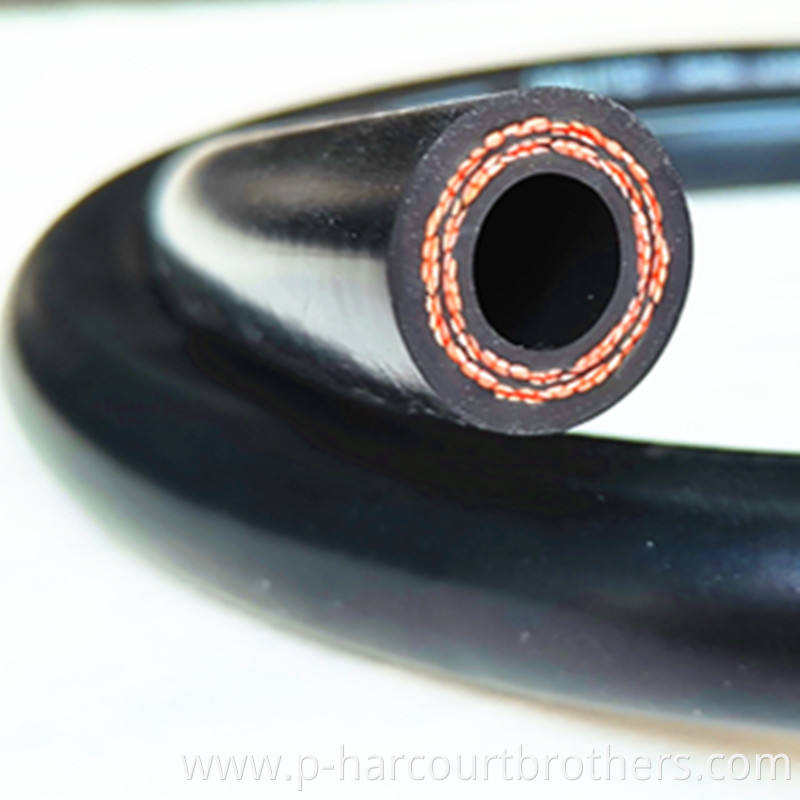

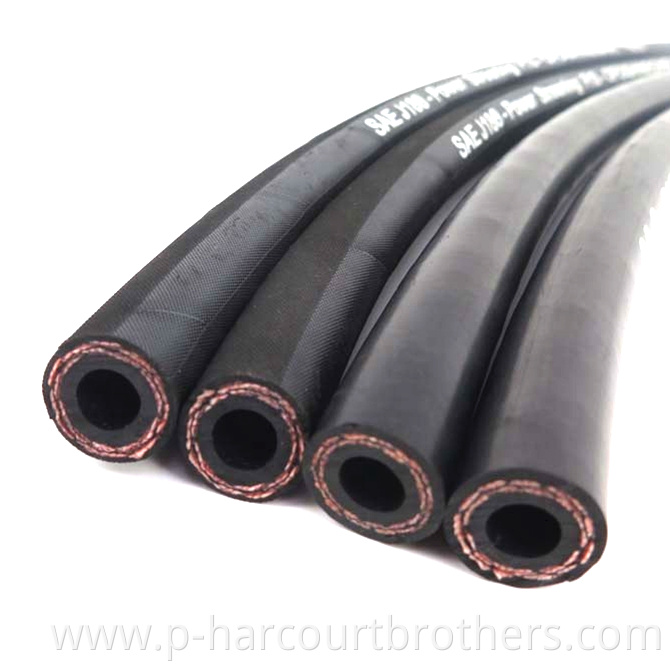

Product Photos
We can offer you different Packing ways.
1. Color woven bag packing ( Blue / White / Red / Yellow)
2. Transparent PVC film packing
3. Pallet packing
4. Carton packing
5. Reel packing
Hebei no one but god energy equipment co., ltd. is located in the west of hebei hengshui city, east of beijing-fuzhou expressway and beijing-shanghai railway, geographic location is superior,the transportation is convenient, the company is a collection research and development, production and sales of rubber products of science and technology enterprises. The company covers an area 30000 square meters , construction area of 8000 square meters , fixed assets 26 million yuan, the staff 85 people, now has all kinds of winding machine, weaving machine, mixer, vulcanizing machine, 60 sets of equipment (sets).Equipped with a complete analysis of testing equipment, advanced detection means is perfect.
The company mainly produces:
1. Resistance burning antistatic high pressure steel wire spiral Rubber Hose, High Pressure Braided Hose, high temperature resistant rubber hose, Concrete Pump Hose .
2.Super high pressure steel wire hose and high pressure hose assembly.
3. Drilling hose,Floating Dredging Hose, Marine Oil Hose large caliber, Dredger Hose, Flame Resistant Hose
Dredger Suction and Discharge Hose.
4. Oil field special rubber seals.
5. Solid control parts: Hammer Union, Air Grip Unions, Mud Tank Unions.
6. Air Operated Thread Protectors, Mech-Tec (TM) Clamp-On Thread Protectors.
The company since its inception, relying on science and technology for development. Established
long-term cooperative relations with chemical shenyang rubber research institute, has the research development, production of hundreds of special rubber products, in the domestic each big oil fields,steel mills, mining, machinery and other industries has been the user's consistent high praise.
